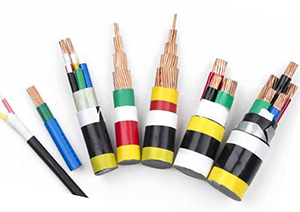

Plastic insulated control cable

This product is suitable for automatic control or monitoring system with AC rated voltage up to and …

Tel：+86-0550-7516689
Fax：0550-7513058
Mail：ahhl@ahhonglin.com

Description

1： Product features and uses

This product is suitable for automatic control or monitoring system with AC rated voltage up to and including 450 / 750V, and field shared transmission line for electrical instrument connection.

Low smoke and halogen-free polyolefin has low smoke volume and halogen-free acid gas release during combustion. It belongs to environmental protection cable and is suitable for occasions with special requirements for fire protection.

2： Product execution standard

GB9330-88

The flame retardant performance test shall comply with the standard of GB 12666-90

3： Usage features

1. AC rated voltage: U0 / u 450 / 750kV

2.*** High working temperature: PVC (polyethylene) insulation not more than 70 ℃

XLPE insulation 90 ℃

Low smoke halogen free flame retardant polyolefin at 70 ℃

Low smoke halogen-free flame retardant crosslinked polyolefin at 90 ℃ and 125 ℃

3.*** Low ambient temperature: PVC sheath: fixed laying - 40 ℃, non - fixed laying - 15 ℃

4. The installation and laying temperature of cables shall not be lower than 0 ℃.

5. Allowable bending radius of cable: the diameter of non armored cable is less than 6 times of cable outer diameter

6. Copper tape shielded or steel strip armored cable is smaller than 12 times of cable outer diameter

4： Basic model and name

1. PVC insulated and sheathed control cable

KVV	Copper core PVC insulated PVC sheathed control cable
KVVP	Copper core PVC insulated PVC sheathed copper wire braided shielded control cable
KVVP2	Copper core PVC insulated PVC sheathed copper tape shielded control cable
KVV22	Copper core PVC insulated PVC sheathed steel strip armored control cable
KVVR	Copper core PVC insulated PVC sheathed control flexible cable
KVVRP	Copper core PVC insulated PVC sheathed copper wire braided shielded control flexible cable
KVVP2-22	Copper core PVC insulated PVC sheathed copper tape shielded steel strip armored control cable

2. XLPE insulated PVC sheathed control cable

KYJV	Copper core XLPE insulated PVC sheathed control cable
KYJVR	Copper core XLPE insulated PVC sheathed control flexible cable
KYJVP	Copper core XLPE insulated copper wire braided shield PVC sheathed control cable
KYJVRP	Copper core XLPE insulated copper wire braided shield PVC sheathed control flexible cable
KYJVP2	Copper core XLPE insulated copper tape shielded PVC sheathed control cable
KYJVRP2	Copper core XLPE insulated copper tape shielded PVC sheathed control flexible cable
KYJV22	Copper core XLPE insulated PVC sheathed steel strip armored control cable
KYJVP22	Copper core XLPE insulated copper braided shield PVC sheathed steel strip armored control cable
KYJVP2-22	Copper core XLPE insulated copper tape shielded PVC sheathed steel strip armored control cable

3. Low smoke halogen-free flame retardant polyolefin insulated and sheathed control cables

KYDYD	Copper core low smoke halogen free flame retardant polyolefin insulated and sheathed control cable
KYDYDR	Copper core low smoke halogen free flame retardant polyolefin insulated and sheathed control flexible cable
KYDYDP	Copper core low smoke halogen free flame retardant polyolefin insulated and sheathed copper wire braided shielded control cable
KYDYDRP	Copper core low smoke halogen free flame retardant polyolefin insulated and sheathed copper wire braided shielding control flexible cable
KYDYDP2	Copper core low smoke halogen free flame retardant polyolefin insulated and sheathed copper tape shielded control cable
KYDYD RP2	Copper core low smoke halogen free flame retardant polyolefin insulated and sheathed copper tape shielded control flexible cable
KYDYD-22	Copper core low smoke halogen free flame retardant polyolefin insulated and sheathed steel strip armored control cable
KYDYDP22	Copper core low smoke halogen free flame retardant polyolefin insulated and sheathed copper wire braided shielded steel strip armored control cable
KYDYDP2-22	Copper core low smoke halogen free flame retardant polyolefin insulated and sheathed copper tape shielded steel strip armored control cable
Note: YDJ low smoke halogen-free flame retardant crosslinked polyolefin is also used for insulation and sheath of basic model

Remarks: Zr should be added before the flame retardant sheath model, and tin plating can be used for copper wire in conductor core.

5： Code name and meaning

Table 2

project	Code name	explain
Flame retardant properties	ZR	It is divided into a, B and C grade flame retardant
Series code	K	Control cable
Insulating materials	V	PVC, flame retardant PVC
	Y	polyethylene
	YD	Low smoke halogen free polyolefin (YDJ low smoke halogen free crosslinked polyolefin)
	YJ	Crosslinked polyethylene
Jacket material	V	PVC, flame retardant PVC
Jacket material	YD	Low smoke halogen free polyolefin
Shielding material	P	Copper wire braided shield
	P1	Tin plated copper wire shielding
	P2	Copper tape shielding
	P3	Aluminum plastic shielding
Armor material	twenty-two	Steel strip armored PVC sheath
	twenty-three	Steel belt armored polyethylene sheath
	thirty-two	Steel wire armored PVC sheath
	thirty-three	Steel wire armored polyethylene sheath
Conductor structure	A	Single strand conductor
	B	Seven stranded conductors
	R	Stranded conductor

6： Main technical indicators

1. The DC resistance of finished cable conductor (Ω / km. 20 ℃) shall refer to table 3 in Appendix A.

2. The insulation resistance and insulation nominal thickness shall meet the requirements in the following table:

Nominal section (mm2)	Nominal insulation thickness (mm)	Insulation resistance (m Ω / km)
Nominal section (mm2)	Nominal insulation thickness (mm)	20℃	70℃
zero point five	zero point six	thirteen	zero point zero one three
zero point seven five	zero point six	twelve	zero point one two
one	zero point six	eleven	zero point zero one one
one point five	zero point seven	eleven	zero point zero one one
two point five	zero point eight	ten	zero point zero one zero
four	zero point eight	eight point five	zero point zero zero eight five
six	zero point eight	seven	zero point zero zero seven zero
ten	one	six point five	zero point zero zero six five

3. The finished cable shall withstand AC 50 Hz 3 There is no breakdown in 0 kV / 5 min voltage test.
