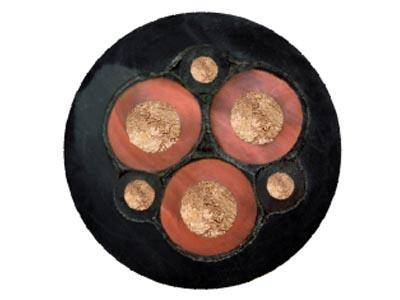

UG/UGF6000V High voltage rubber sheathed cable

Ugf-6000v mining rubber sleeve flexible cable, ug-6000v mining rubber sleeve flexible cable 2. Exec…

Tel：+86-0550-7516689
Fax：0550-7513058
Mail：ahhl@ahhonglin.com

Description

Ugf-6000v mining rubber sleeve flexible cable, ug-6000v mining rubber sleeve flexible cable

2. Executive standard of high voltage rubber sheathed mine cable: TL / j30-94

3. UGF cable uses: AC rated voltage 6kV and below mobile power distribution equipment and mining machinery; Copper core rubber insulated rubber sheathed flexible cables for lifting and transportation machinery.

4. Service characteristics: the rated voltage of the cable is 6kV;

The long-term working temperature of the cable is + 65 ℃.

The small bending radius of the cable is 6 times of the cable diameter.

The oil resistance and non flammability of chloroprene rubber or mixed rubber mainly composed of chloroprene rubber used for cable sheath shall not be evaluated.

5. The specifications of cables shall be in accordance with the following table

Conductor structure: main core thickness, ground core thickness, sheath thickness, nominal outer diameter, main core resistance

UGF 3*6+1*6 84/0.30 4.5 1.4 6.0 40.3 3.30

UGF 3*10+1*10 84/0.40 4.5 1.6 6.0 43.8 1.91

UGF 3*16+1*16 126/0.40 4.5 1.6 6.0 46.8 1.21

UGF 3*25+1*16 196/0.40 4.5 1.6 6.0 49.3 0.78

UGF 3*25+1*16 276/0.40 4.5 1.6 6.0 52.0 0.554
