YN / YTN series stainless steel shockproof pressure gauge shell and measuring element are made of stainless steel, which are used in corrosive occasions of measured medium and field environment; The measures such as filling damping oil in the case and configuring buffer device have good shock resistance. It is applicable to the occasions where the pressure of the measured medium has strong pulse change or pressure impact and is often suddenly unloaded in the production process, as well as the occasions with large environmental vibration. Stainless steel shockproof pressure gauge is mainly used for pressure detection in closed systems in metallurgical, electric power, petrochemical, light industrial machinery and other industrial departments.

1、 Technical parameters:

1. Dial diameter: Φ 40； Φ 50； Φ 60； Φ 100； Φ 150； Φ two hundred

2. Operating ambient temperature: - 25 ~ 70 ℃

3. Temperature influence: no more than 0.4% / 10 ℃ (the service temperature deviates from 20 ± 5 ℃)

4. Enclosure protection grade: IP64

5. Anti vibration of working environment: class v.h.4

6. Material: a shell material: 0Cr18Ni9 (304)

Component B material: 0Cr18Ni9 (304); 0Cr17Ni12Mo2 (316)

7. Interface thread: standard thread M14 * 1.5（ Φ 60)； M20*1.5（ Φ 100， Φ 150， Φ 200）

Special thread: G1 / 4 G1 / 2 npt1 / 4 npt1 / 2 Pt and other threads can be specially customized

2、 Measurement range: (unit: MPa)

-0.1~0；- 0.1~0.06；- 0.1~0.15；- 0.1~0.3；- 0.1~0.5；- 0.1~0.9；- 0.1~1.5；- 0.1~2.4； 0~0.1； 0~0.25； 0~0.4； 0~0.6； 0~1.0； 0~1.6； 0~2.5； 0~4.0； 0~6.0； 0~10； 0~16； 0~25； 0~40； 0~60； 0~100（ Φ 100、 Φ 150）

3、 Product selection

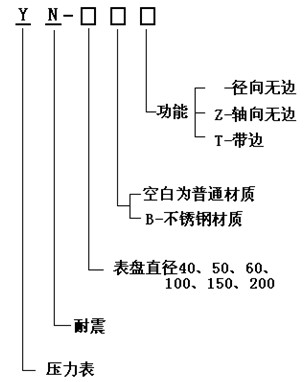

Model selection Description: "t" in function selection is applicable to Φ sixty Φ one hundred Φ Pressure gauge with 150 dial
