Ye-100b, 150B series stainless steel capsule pressure gauge

Ye-100b and 150B series stainless steel capsule pressure gauges can measure the micro pressure of co…

Tel：+86-0550-7516689
Fax：0550-7513058
Mail：ahhl@ahhonglin.com

Description

Ye-100b and 150B series stainless steel capsule pressure gauges can measure the micro pressure of corrosive gas or liquid. 1Cr18Ni9 Stainless steel is used for the shell and impulse system of the instrument.

Main technical parameters:

Model structure type measurement upper limit kPa accuracy% ye-100-bye-100z-b radial boundless axial boundless 0 ~ 1; 0~1.6； 0~2.5； 0~4； 0~6； 0~10； 0~16； 0~25； 0~40； 0~60；- 1~0；- 1.6~0；- 2.5~0；- 4~0；- 6~0；- 10~0；- 16~0；- 25~0；- 40~0；- 0.5~0.5；- 0.8~0.8；- 1.2~1.2；- 2~2；- 3~3；- 5~5；- 8~8；- 12~12；- 20~20；- 30 ~ 30 ± 2.5 (± 1.6) ye-150-b radial boundless

Operating environment conditions of stainless steel capsule pressure gauge: - 25 ~ 55 ℃, relative humidity no more than 80%.

Anti vibration of working environment: class v.h.3

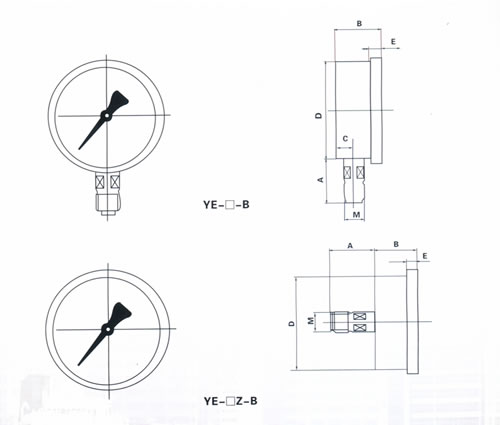

不锈钢膜盒压力表外形尺寸

Model and overall dimension mmABCDEMYE-100-B434516.5981020×1.5YE-100Z-B41.545/981020×1.5
