ultrasonic flowmeter

tuf-2000s fixed split ultrasonic flowmeter features high-precision measurement linearity better tha…

Tel：+86-0550-7516689
Fax：0550-7513058
Mail：ahhl@ahhonglin.com

Description

tuf-2000s fixed split ultrasonic flowmeter features high-precision measurement linearity better than 0.5%, repeatability accuracy better than 0.2%, measurement accuracy better than ± 1%, powerful memory function, automatic memory of the accumulated flow in the first 512 days, the first 128 months and the first 10 years, automatic memory of the time and flow of the first 64 calls and power cuts, and automatic memory of whether the working state of the flowmeter in the first 32 days is normal. The measurement range is large. Different types of sensors can be selected to realize the measurement of pipeline flow with diameter of DN15 ~ dn6000mm. With high reliability, low-voltage and multi pulse transmitting circuit, the measurement accuracy, service life and reliability are greatly improved. Different versions of flow meters in Chinese and English menus can be supported, and Chinese or English menus can be supported, It is convenient, fast and has strong anti-interference ability. It adopts double balanced signal differential transmitting and receiving circuit to effectively resist strong interference sources such as frequency converter, TV Tower and high-voltage line

Optional sensor		Optional sensor base model	measuring range	Fluid temperature	accuracy
Standard external clamp type	TS-2(small-scale)	TUF-2000SNB1	DN15-100mm	-30℃～90℃	be better than ±1%
	TM-1(medium-sized)	TUF-2000SNB2	DN50-700mm
	TL-1(large)	TUF-2000SNB3	DN300-6000mm
High temperature external clamp type	HTS-1(small-scale)	TUF-2000SNB4	DN15-100mm	-30℃～160℃
	HTM-1(medium-sized)	TUF-2000SNB5	DN50-1000mm
Plug in	TC-1(Standard insertion)	TUF-2000SNC1	DN80-6000mm	-40℃～160℃
	TLC-2(Extended insertion)	TUF-2000SNC2
Standard pipe section type	Standard pipe section type	SK-TUF-2000SNG	DN15-1000mm	-40℃～160℃	优于 ±0.5%

Power Supply	Primary meter dc8-36v, secondary meter AC220V or DC24V
Input	3 channels of 4 ~ 20mA analog input and 2 channels of three wire PT100 resistance signal input
Output	Isolated RS232 / RS485 output, 2-way isolated OCT output, 1-way isolated 4-20mA output (passive)
communication protocol	Meter-bus protocol, MODBUS protocol, Fuji extended protocol, simple water meter protocol

Basic parameters

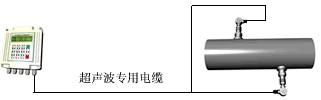

Measurement composition diagram

Selected host	Wall mounted tuf-2000sw for wall mounting size: 170 × one hundred and eighty × 56mm	External clamp measuring diagram

	Panel mounted tuf-2000ss for instrument panel installation size: 152 × 76mm	Plug in measuring chart

	Wall mounted tuf-2000sd explosion proof grade D Ⅱ BT4 size: 298 × two hundred and ninety-eight × 110mm	Pipe section measurement diagram
