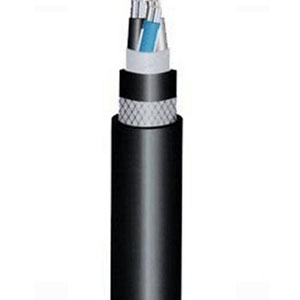

Fluoroplastic high temperature resistant control cable

Fluoroplastic insulated and sheathed high temperature resistant control cable is suitable for petrol…

Tel：+86-0550-7516689
Fax：0550-7513058
Mail：ahhl@ahhonglin.com

Description

Fluoroplastic insulated and sheathed high temperature resistant control cable is suitable for petroleum, chemical, power generation, metallurgy and other industrial and mining enterprises. It is used as the signal transmission line of electrical instrument and automatic control system in the harsh environment of high temperature, low temperature and acid, alkali, oil, water and corrosive gas.

1、 Production execution standard

Adopt enterprise standard.

2、 Conditions of use

1. Working temperature

KFF-200、KFPF-200、KFF22-200、KFP1F-200

Kfp1f22-200, kfpf22-200, type not more than 200 ℃

KFF-260、KFPF-260、KFF22-260、KFP1F-260

The temperature of kfpf1f22-260 and kfpf22-260 does not exceed 260 ℃;

2. Rated voltage: U0 / u: 450 / 750V and below;

3. * low ambient temperature: fixed laying - 60 ℃, non - fixed laying - 20 ℃;

4. * small bending radius: the non armored type shall not be less than 10 times of the outer diameter of the cable; The armored or shielded type shall not be less than 12 times the outer diameter of the cable.

3、 Model name

model	name	remarks
KFF－200	F46 insulated and sheathed high temperature resistant cable	Long term work Temperature 200 ℃
KFPF－200	F46 insulated and sheathed copper wire braided shielded high temperature resistant cable
KFP1F-200	F46 insulated and sheathed tinned copper wire braided shielded high temperature resistant cable
KFF22－200	F46 insulated and sheathed steel strip armored high temperature resistant cable
KFPF22－200	F46 insulated and sheathed copper wire braided shielded steel strip armored high temperature resistant cable
KFP1F22-200	F46 insulated and sheathed tinned copper wire braided shielded steel strip armored high temperature resistant cable
KFF－260	PFA insulated and sheathed high temperature cable	Long term work Temperature 260 ℃
KFPF－260	PFA insulated and sheathed copper wire shielded high temperature cable
KFP1F-260	PFA insulated and sheathed tinned copper wire braided shielded high temperature resistant cable
KFF22－260	PFA insulated and sheathed steel strip armored high temperature resistant cable
KFPF22－260	PFA insulated and sheathed copper wire braided shielded steel strip armored high temperature resistant cable
KFP1F22－260	PFA insulated and sheathed tinned copper wire braided shielded steel strip armored high temperature resistant cable

4、 Meaning of letter and number code for model

project	Code name	meaning
Series code	K	Control cable
Insulating materials	F	Poly (perfluoroethylene propylene) (F46) * * * high working temperature 200 ℃
Insulating materials	F	Soluble polytetrafluoroethylene (PFA) * * * high working temperature 260 ℃
Shielded cable	P P1	No shielding can be omitted Copper wire weaving Tinned copper wire knitting
Jacket material	F	Poly (perfluoroethylene propylene) (F46) * * * high working temperature 200 ℃
Jacket material	F	Soluble polytetrafluoroethylene (PFA) * * * high working temperature 260 ℃
Armor material	twenty-two	Steel strip armour
Conductor coating	X Y	Tinned conductor Silver plated conductor
Heat resistance grade	two hundred two hundred and sixty	*High operating temperature 200 ℃ *High working temperature 260 ℃
Specifications		Fill in the number of cores × Conductor cross section (n × S) N:2,3,4,5,7,8,10,12,14,16,19,24,27,30,37,44,48,52,61 S:0.2,0.35,0.5,0.75,1.0,2.5,4,6(m㎡)
Type of conductor (fill in brackets)	A B R	Single strand conductor Seven stranded Multi strand conductor

Example 1: 10 core 1.5mm2 tinned copper wire type a conductor F46 insulated and sheathed steel strip armored tinned copper wire shielded high temperature cable is expressed as kfpf22-20010 × 1.5(A)
Example 2: 10 core 1.5m2 silver plated class B conductor, PFA insulated and sheathed temperature resistant cable is expressed as kffy-26010 × 1.5(B)
Example 3: 10 core 1.5mm2 copper wire R-type conductor F46 insulated and sheathed high-temperature cable is expressed as kff-20010 × 1.5(R)

5、 Main technical indicators

project			Technical index
Section (M2)			zero point five	zero point seven five	one	one point five	two point five	four	six
DC resistance of conductor at 20 ℃ ≤Ω/km	No coating	AB	thirty-six	twenty-four point five	eighteen point one	twelve point one	seven point four one	four point six one	three point zero eight
	No coating	R	thirty-nine	twenty-six	nineteen point five	thirteen point three	seven point nine eight	four point nine five	three point three
	Tin plating	AB	thirty-six point seven	twenty-four point eight	eighteen point two	twelve point two	seven point five six	four point seven zero	three point one one
	Tin plating	R	forty point one	twenty-six point seven	twenty	thirteen point seven	eight point two one	five point zero nine	three point three nine
	plate with silver	AB	thirty-six	twenty-four point five	eighteen point one	twelve point one	seven point four one	four point six one	three point zero eight
	plate with silver	R	thirty-nine	twenty-six	nineteen point five	thirteen point three	seven point nine eight	four point nine five	three point three
Test voltage		3000V,5min
insulation resistance		Over 1000m Ω· km at 20 ℃

6、 Product size

Section (M2)		zero point five	zero point seven five	one	one point five	two point five	four	six
Type of conductor	A	1/0.80	1/0.97	1/1.13	1/1.38	1/1.76	/	/
	B	7/1.30	7/0.37	7/0.43	7/0.52	7/0.68	7/085	7/1.04
	R	16/.020	24/0.20	32/0.20	49/0.52	49/0.25	56/0.30	84/0.30
