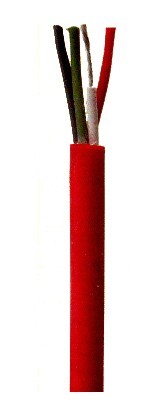

YVF Nitrile insulated and sheathed flexible control cable

This product is suitable for connecting wire or signal transmission of mobile electrical instrument …

Tel：+86-0550-7516689
Fax：0550-7513058
Mail：ahhl@ahhonglin.com

Description

1、 Product features and uses
This product is suitable for connecting wire or signal transmission of mobile electrical instrument with AC rated voltage of 450 / 750V and below. The cable has the characteristics of cold resistance, oil resistance, tensile strength, tear resistance and softness. It is suitable for special occasions with mobile requirements in metallurgy, electric power, petrochemical industry, mining, shipbuilding industry, port and mobile equipment manufacturing industries.
2、 Product execution standard
Q/ZS2003-9
The flame retardant performance test shall comply with the standard of GB 12666-90
3、 Usage features
1. AC rated voltage: U0 / u 450 / 750V; * high working temperature: 70 ℃ (105 ℃ for flame retardant type);
2. Low ambient temperature: fixed laying - 60 ℃, non - fixed laying - 15 ℃;
3. The temperature of cable installation and laying shall not be lower than - 25 ℃.
4、 Basic model and name

Type number	Product name
(K)YVFR	NBR insulated and sheathed control flexible cable
(K)YVFRP	NBR insulated and sheathed copper wire braided shielded flexible control cable

Remarks: 1. If flame retardant cable is needed, please add Zr before the model;
2. The copper wire in the conductor core can be tinned;
3. If there are special requirements for cables, they can be produced according to the provided drawings or designed and produced according to the requirements of service environment.
5、 Meaning of code name

project	Code name	Shuo Ming
Flame retardant properties	ZR	Flame retardant nitrile flexible cable
Series code	K	Control cable
Insulating sheath material	Y	Mobile series
Insulating sheath material	VF	Butyronitrile
Shielding material	P	Copper wire braided shield
Shielding material	P1	Tin plated copper wire shielding
Conductor structure	A	Single strand conductor
	B	Seven stranded conductors
	R	Stranded conductor

6、 Main technical indicators
1. DC resistance of finished cable conductor (in accordance with gb3956);
2. The insulation resistance shall not be less than 50m Ω / km at 20 ℃;
3. The finished cable shall withstand AC 50 Hz 2.5 kV / 5 min voltage test without breakdown.

7、 Basic cable specifications and structural parameters

Core × Nominal section (mm2)	Conductor structure (number of roots) × Diameter) mm	Large outer diameter of cable (mm)		Reference weight (kg / km)
Core × Nominal section (mm2)	Conductor structure (number of roots) × Diameter) mm	YVFR	YVFRP	YVFR	YVFRP
two × zero point seven five	twenty-four × zero point two zero	seven	eight point two	eighty-three	one hundred and twenty-three
two × one	thirty-two × zero point two zero	eight	nine point one	ninety-two	one hundred and thirty-seven
two × one point five	forty-eight × zero point two zero	nine point two	ten point five	one hundred and twenty-four	one hundred and seventy-four
two × two point five	fifty-one × zero point two five	ten point five	eleven point eight	one hundred and sixty-six	two hundred and twenty
three × zero point seven five	twenty-four × zero point two zero	eight point five	nine point eight	one hundred and three	one hundred and forty-three
three × one	thirty-two × zero point two zero	nine	ten point two	one hundred and ten	one hundred and fifty-two
three × one point five	forty-eight × zero point two zero	nine point five	ten point seven	one hundred and thirty-six	one hundred and seventy-seven
three × two point five	fifty-one × zero point two five	twelve point five	thirteen point eight	one hundred and ninety	two hundred and forty-three
four × zero point seven five	twenty-four × zero point two zero	nine	ten point two	one hundred and twenty	one hundred and sixty
four × one	thirty-two × zero point two zero	nine point three	ten point nine	one hundred and thirty	one hundred and seventy-three
four × one point five	forty-eight × zero point two zero	eleven	twelve point five	one hundred and sixty-one	two hundred and five
four × two point five	fifty-one × zero point two five	thirteen point five	fourteen point nine	two hundred and thirty	two hundred and seventy
five × zero point seven five	twenty-four × zero point two zero	ten	eleven point five	one hundred and twenty-eight	one hundred and sixty-eight
five × one	thirty-two × zero point two zero	eleven	twelve point five	one hundred and fifty	two hundred and twenty
five × one point five	forty-eight × zero point two zero	twelve	thirteen point five	two hundred	two hundred and seventy
five × two point five	fifty-one × zero point two five	fourteen	fifteen point two	three hundred	three hundred and ninety
seven × zero point seven five	twenty-four × zero point two zero	ten point five	eleven point five	one hundred and fifty-one	two hundred and twenty-one
seven × one	thirty-two × zero point two zero	twelve point five	fourteen point two	one hundred and seventy-two	two hundred and forty-one
seven × two point five	fifty-one × zero point two five	fifteen	sixteen point five	three hundred and sixty	three hundred and eighty
eight × zero point seven five	twenty-four × zero point two zero	thirteen point five	fourteen point five	one hundred and seventy-five	two hundred and thirty-four
eight × one	thirty-two × zero point two zero	fourteen	fifteen point two	two hundred	two hundred and thirty-three
eight × one point five	forty-eight × zero point two zero	fifteen	sixteen point six	two hundred and eighty-eight	two hundred and ninety-one
eight × two point five	fifty-one × zero point two five	sixteen	seventeen point two	four hundred and twenty	five hundred and eighty
ten × zero point seven five	twenty-four × zero point two zero	fourteen point one	fifteen point four	two hundred and twenty	three hundred and twenty
ten × one	thirty-two × zero point two zero	fifteen	sixteen	two hundred and seventy	three hundred and ninety-four
ten × one point five	forty-eight × zero point two zero	seventeen	eighteen point one	three hundred and fifty-five	four hundred and eighty
ten × two point five	fifty-one × zero point two five	nineteen	twenty point one	five hundred and twenty	six hundred and fifty
twelve × zero point seven five	twenty-four × zero point two zero	thirteen	fourteen point five	two hundred and fifty-five	three hundred and sixty-five
twelve × one	thirty-two × zero point two zero	fourteen point two	fifteen point four	two hundred and ninety-seven	three hundred and ninety-seven
twelve × one point five	forty-eight × zero point two zero	sixteen	seventeen point two	three hundred and eighty-two	five hundred and twenty
twelve × two point five	fifty-one × zero point two five	twenty	twenty-one point five	five hundred and ninety-seven	six hundred and ninety
fourteen × zero point seven five	twenty-four × zero point two zero	seventeen	eighteen	two hundred and ninety	three hundred and ninety
fourteen × one	thirty-two × zero point two zero	seventeen point six	nineteen	three hundred and forty-one	four hundred and seventy
fourteen × one point five	forty-eight × zero point two zero	nineteen	twenty	four hundred and sixty	five hundred and eighty
fourteen × two point five	fifty-one × zero point two five	twenty-one	twenty-two	five hundred and ninety	seven hundred and ninety
nineteen × zero point seven five	twenty-four × zero point two zero	fifteen point eight	sixteen point eight	three hundred and fifty	four hundred and eighty
nineteen × one	thirty-two × zero point two zero	seventeen	eighteen	four hundred and twenty	five hundred and fifty
nineteen × one point five	forty-eight × zero point two zero	twenty	twenty-one	five hundred and forty	six hundred and sixty
nineteen × two point five	fifty-one × zero point two five	twenty-three	twenty-four point two	eight hundred and fifty-five	one thousand and seventy-three
